Photos and videos from the field — retrofits, press work, and training sessions.
Ink chamber retrofit in progress — chambered doctor blade assembly installation

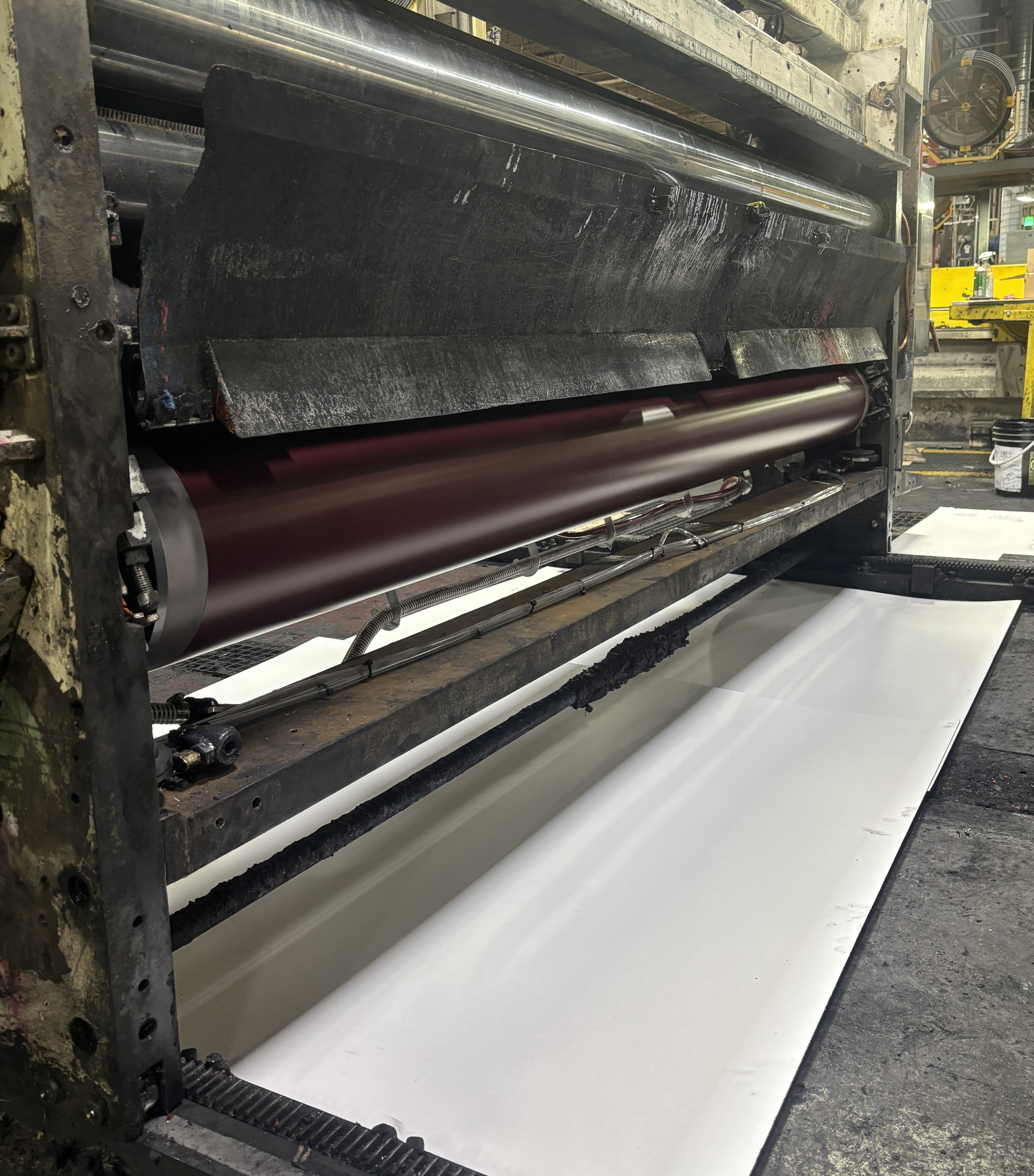

Press roll and doctor blade detail after retrofit completion
Fluid and air control system overhaul on a six-color print section

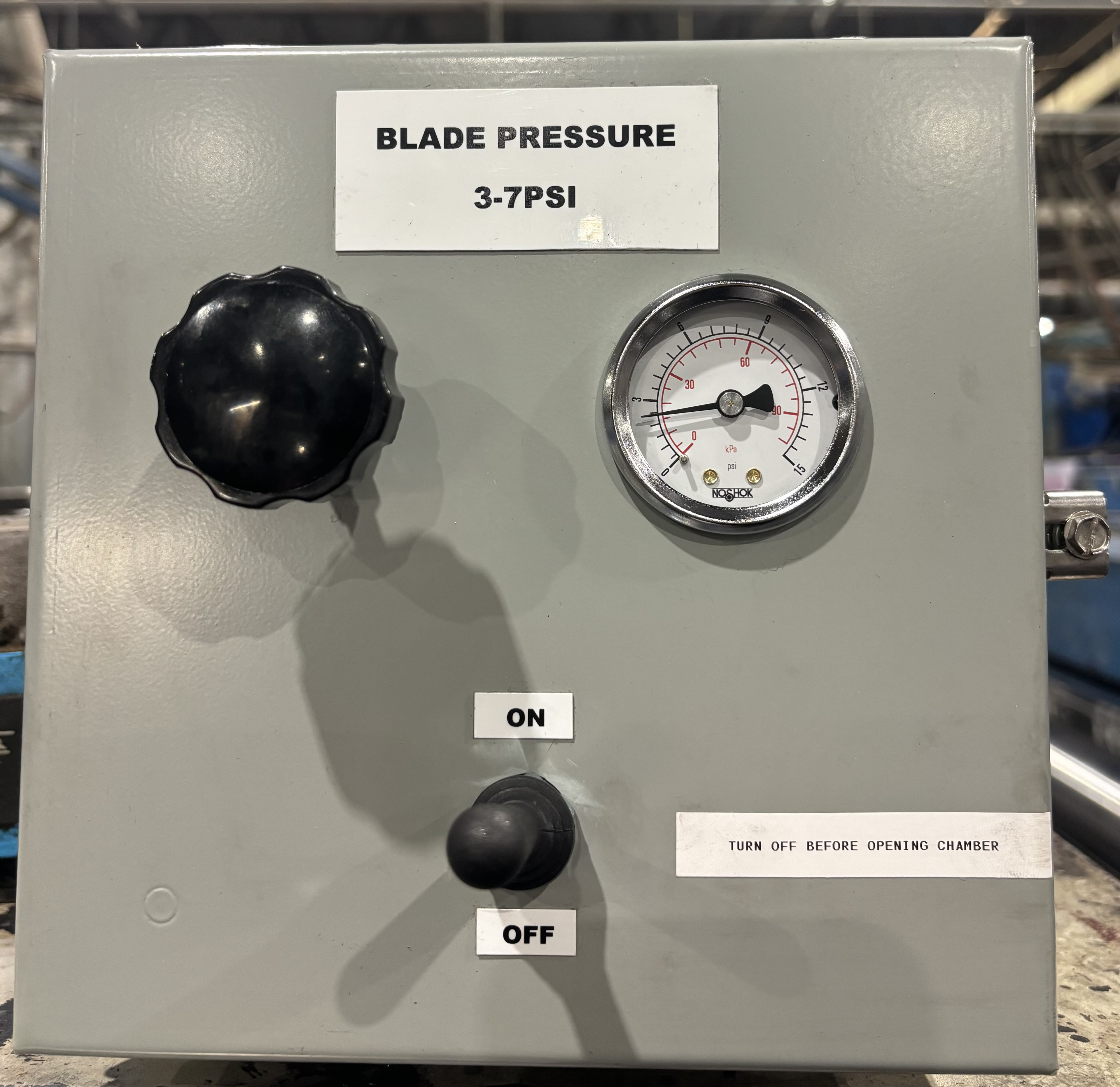

Pneumatic controls and air system components after upgrade

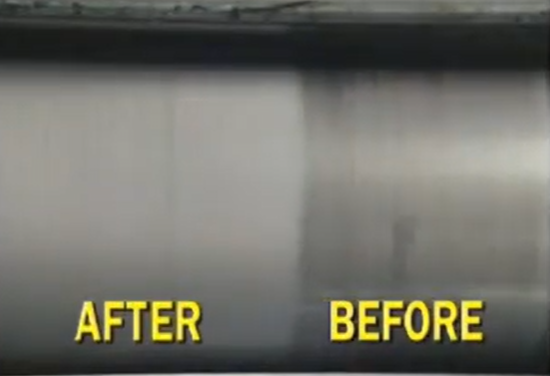

Anilox roll before and after ultrasonic cleaning — cell volume restored

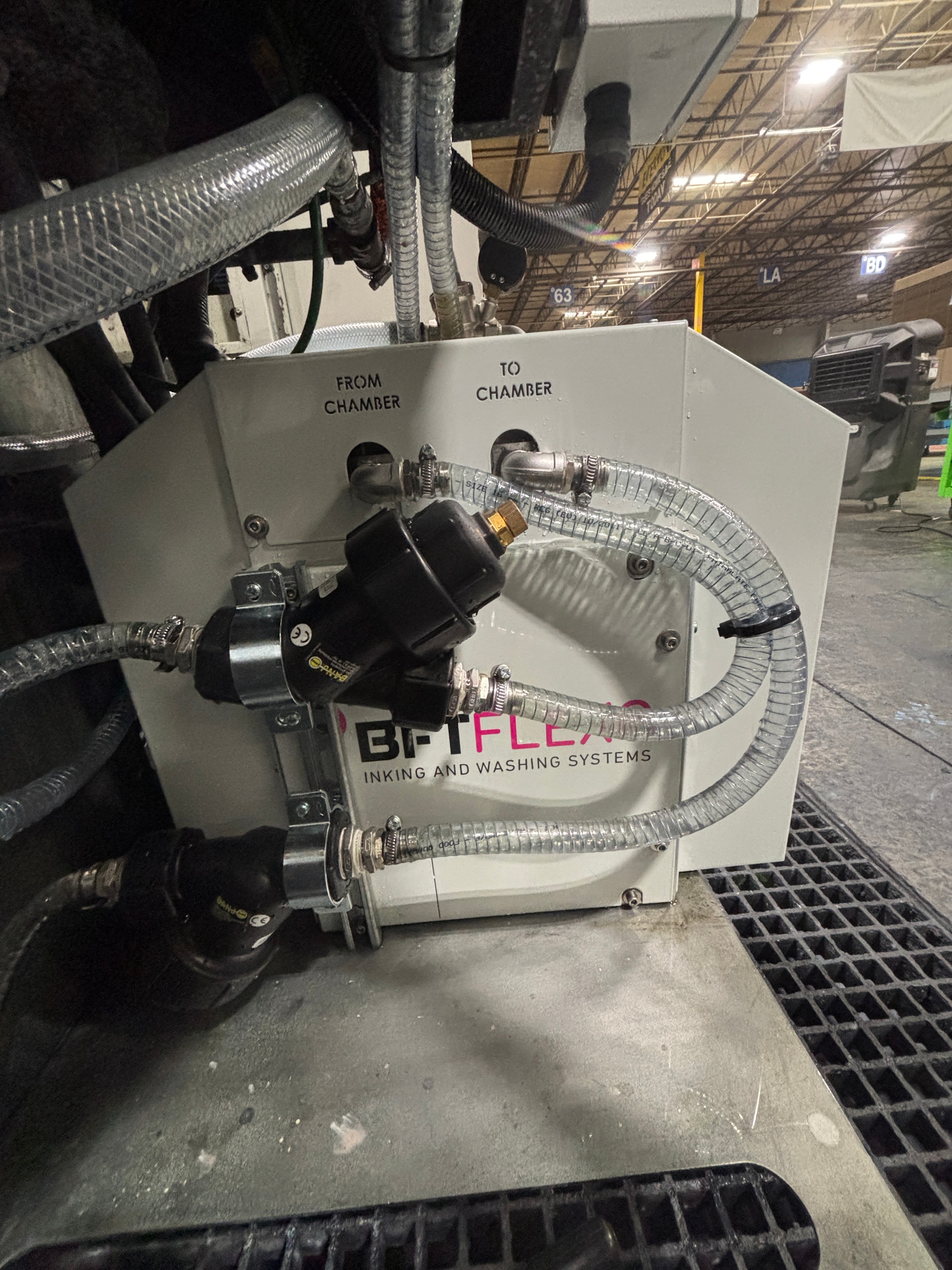

BFT Flexo ink system plumbing — chamber feed and return lines installed
Siemens SIMATIC HMI control panel — Unit 1 chamber pressure monitoring station
Chambered doctor blade assembly seated against anilox roll — close-up of blade contact

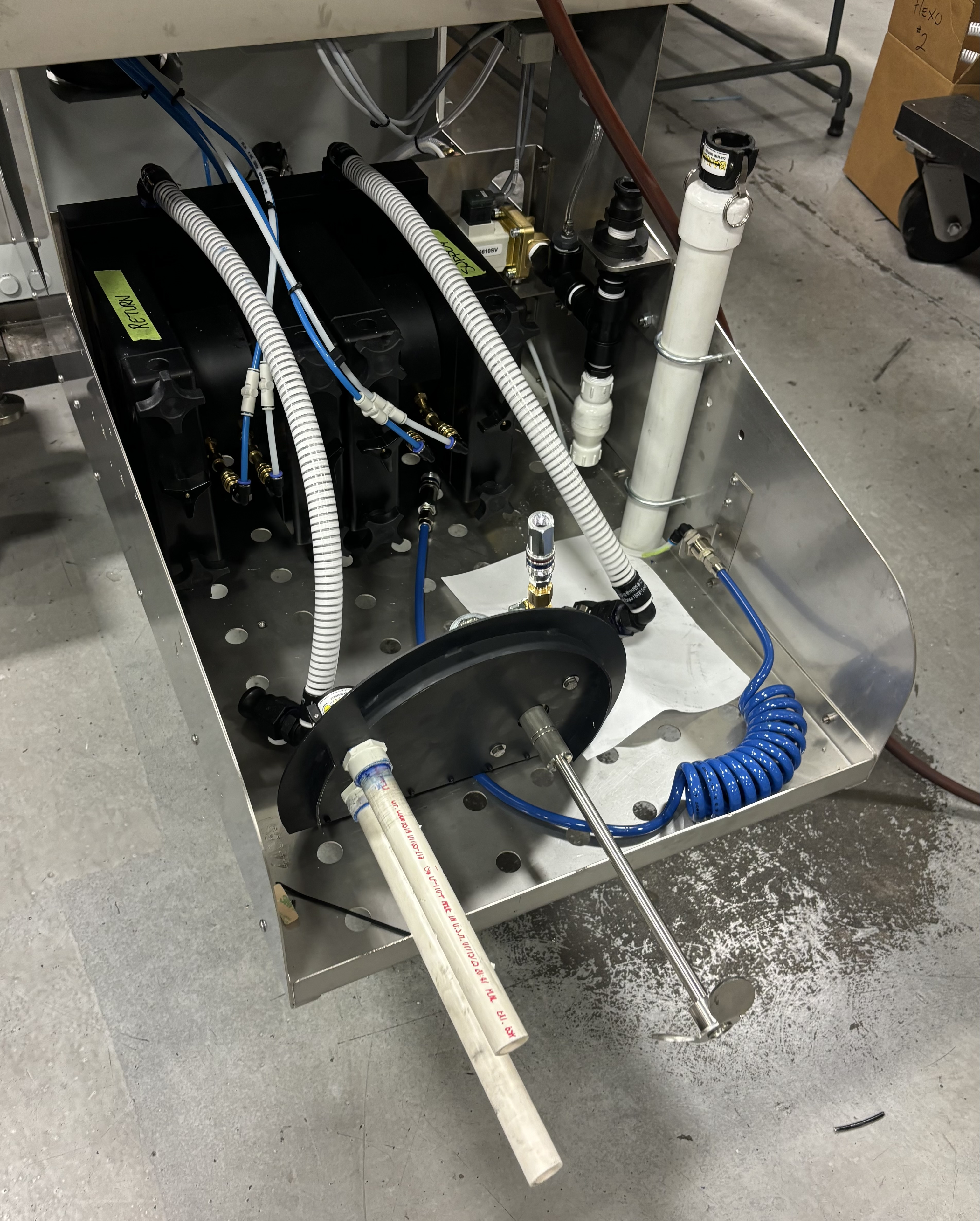

Dual diaphragm ink pump installation — ink supply and return circuit for two print decks

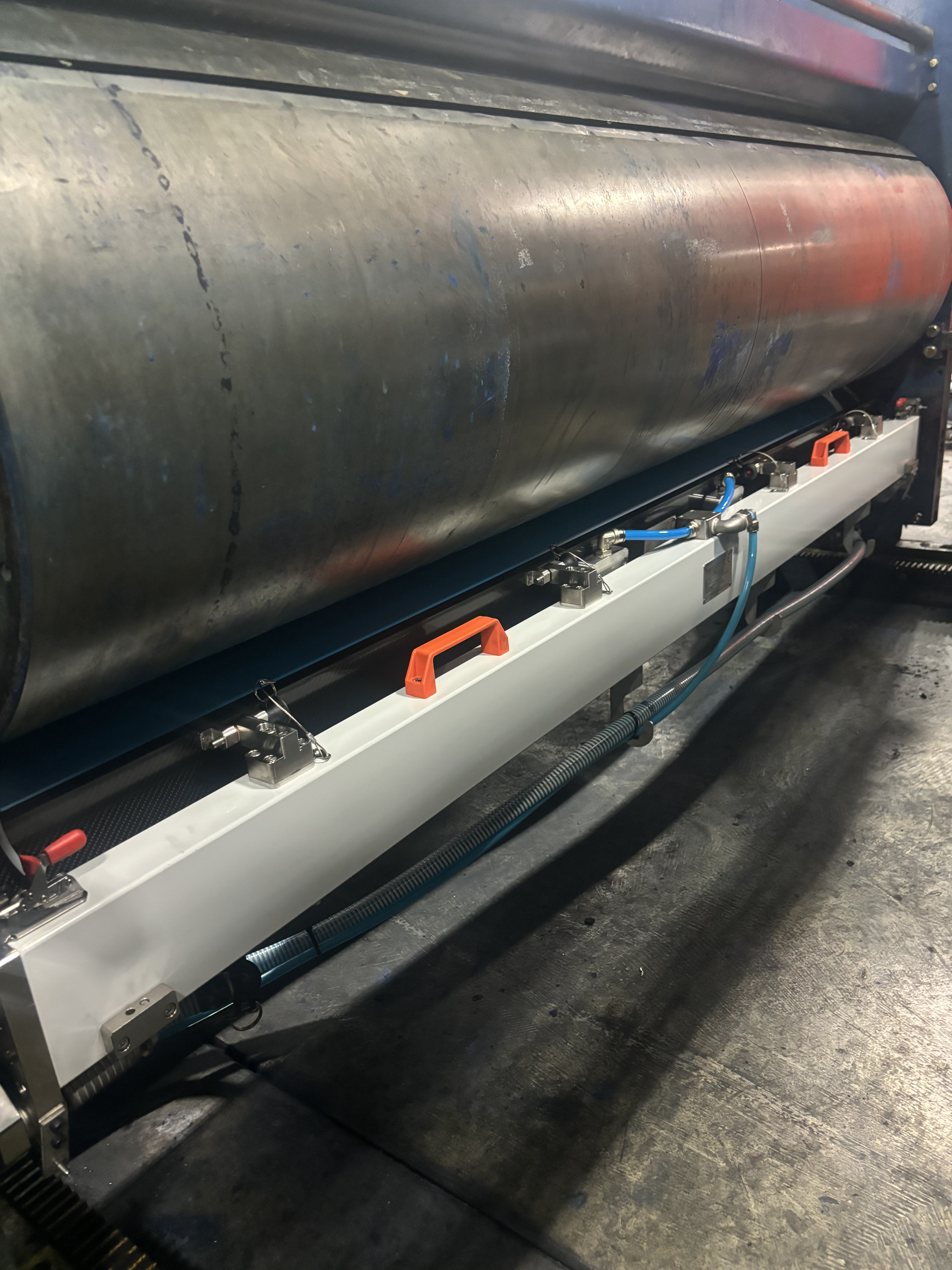

Full-width chambered doctor blade system installed across a wide-format print unit
Chambered doctor blade and anilox roll — side angle showing blade seating and end seals

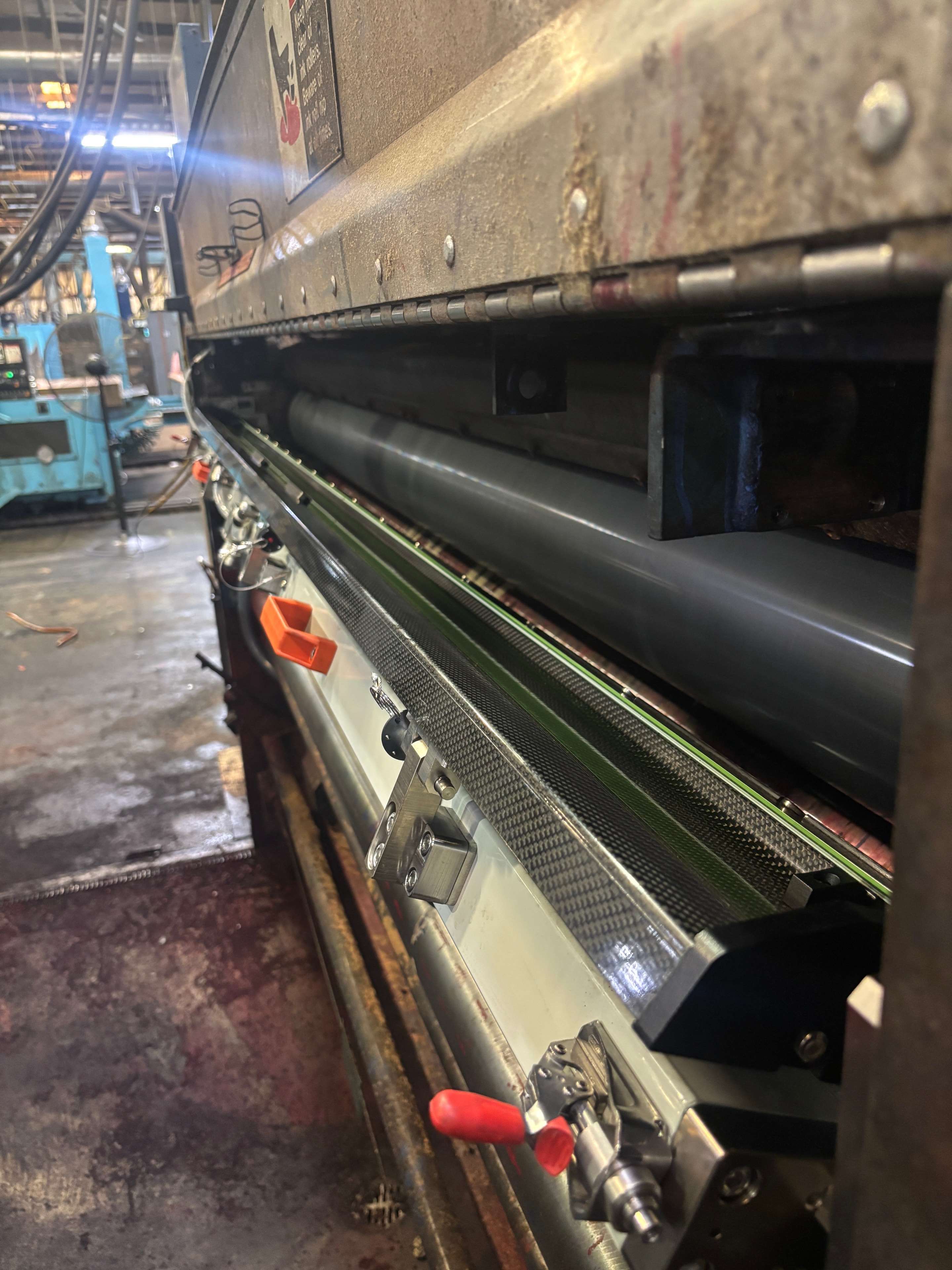

Carbon fiber doctor blade chamber — BFT Carbon composite blade body with red end caps

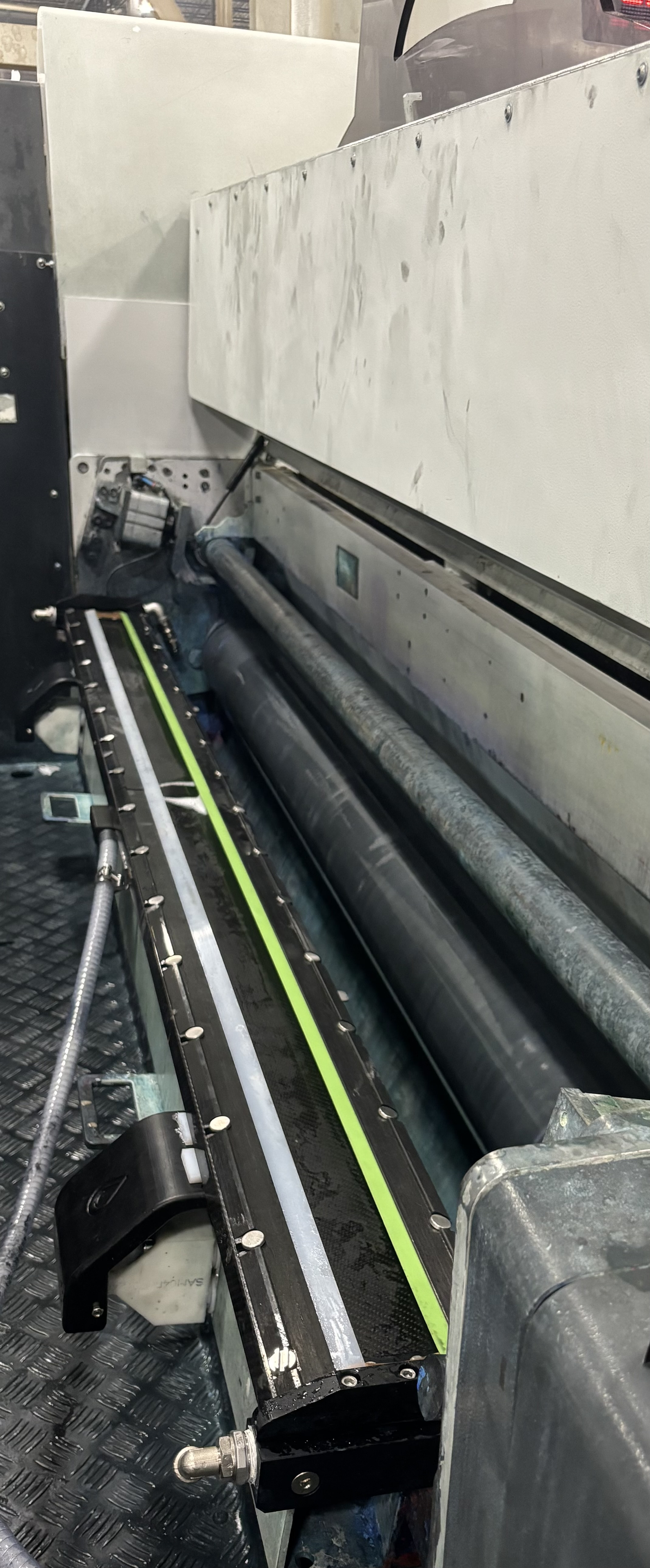

Dual BFT Carbon chambered doctor blade systems installed on two adjacent print decks
Carbon fiber chamber body with green end seals — blade and anilox roll alignment detail
